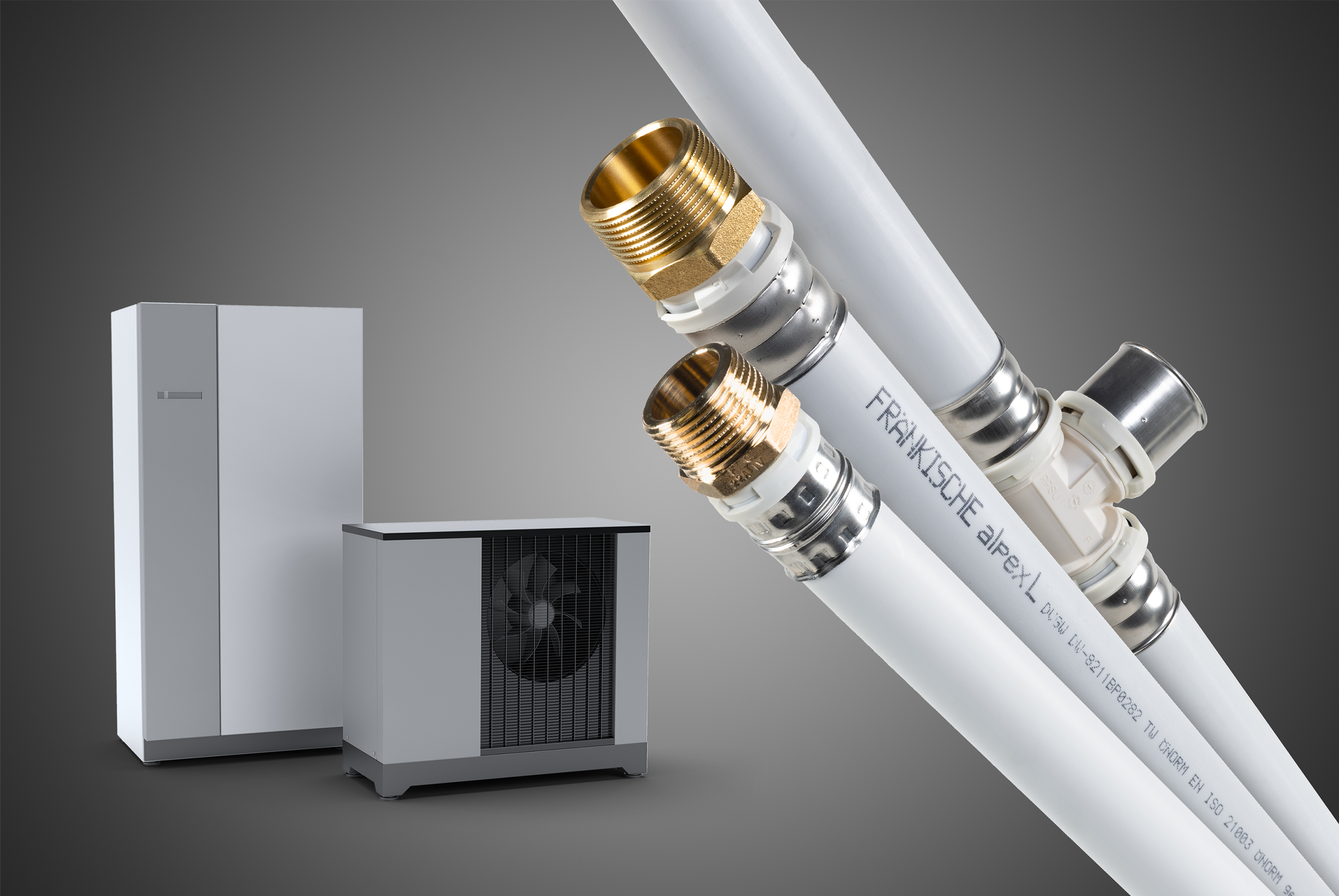

alpex, turatec and alpex L – perfect for connection to heat pumps

As with other energy sources such as pellets or gas, you can also fully install heat pumps with the alpex system.

Mixing materials, e.g. using a metal system, is not necessary. On the contrary: installers save themselves the trouble of double material storage on the construction site and in the warehouse and also a lot of time during installation, as they do not constantly have to switch between tools.

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

Unblock content Accept required service and unblock content

Application examples for the connection to heat pumps

Heat pumps that are installed outside the building envelope and whose connection pipes are located above ground and heat pumps that are installed inside the building envelope can be connected at the secondary terminals with alpex and alpex L fittings without any restrictions.

Heat pump outdoors

Heat pump indoors

For outdoor heat pumps, observe the following in particular:

UV protection of pipes, fittings and insulation
Thermal insulation 200 % outside the building envelope
Frost protection of the heat transfer medium (Observe manufacturer’s instructions!)
Select suitable pipes if the connection pipes are installed underground

For indoor heat pumps, observe the following in particular:

Thermal insulation of the secondary circuit according to the relevant national standards
Cold insulation of the primary circuit
Frost protection of the heat transfer medium in the primary circuit (Observe manufacturer’s instructions!)

Connection options with alpex and alpex L

You can take advantage of the comprehensive range of alpex and alpex L products without restriction for connection to the various types of heat pumps. The ingenious design of the alpex fittings and comprehensive selection in dimensions 16-32 mm ensure highest flexibility in terms of processing options. The alpex L system is available for dimensions 40-75 mm. Regardless of whether it is about installing long pipe sections or riser pipes in residential buildings – alpex L perfectly matches the requirements for large pipe dimensions.

The alpex system is extremely durable and impresses with its high load capacity and hygienic safety. All flowoptimised pipes and fittings can be installed in a space-saving manner, are easy to insulate and resistant to hot water of up to 95 °C* at a permanent pressure of 10 bar.

The advantages of alpex when connecting to heat pumps

alpex_Temperatur

High continuous operating temperature

95 °C* max. permissible continuous operating temperature

alpex_Dämmung

Insulation

Wide range of pre-insulated pipes up to an insulation of 100 %

alpex_Bleifreiheit

Lead-free

Lead-free and dezincification resistant with brass and PPSU

alpex_Brandschutz

Fire protection solution

alpex products allow a wide range of fire protection solutions

alpex_Innendurchmesser

30 % larger cross section

Largest inside diameter with alpex-duo XS as compared to similar radial press fittings

alpex_inkrustationsfrei

Incrustation-free

Free of deposits and incrustations, no risk of mineral deposits from substances in the water

* for turatec pipes permanently up to 70 °C and 10 bar

For further information, please refer to the following documents:
